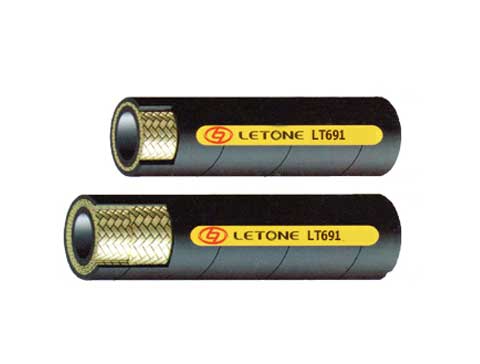

Ultra-Low Temperature Steel Wire Braided Hydraulic Rubber Hose

SIZE
(Dash)

SIZE
(in.)

I.D.
(mm)

O.D.
(mm)

Max.W.P.

Min.B.P.

Min.B.R.

Min

Max

Max

(MPa)

(MPa)

(mm)

6

1/4-1S

5.8

6.5

13.5

25

100

80

8

5/16-1S

7.7

8.5

15.5

21

84

92

10

3/8-1S

9.8

10.5

17.5

21

84

104

13

1/2-1S

12.8

13.5

21.0

14

56

144

16

5/8-1S

15.8

16.6

24.5

14

56

160

19

3/4-1S

18.8

19.8

28.5

14

56

192

25

1"-1S

24.8

25.8

35.5

9

36

240

6

1/4-2S

5.8

6.5

15.2

42

168

80

8

5/16-2S

7.8

8.5

16.8

42

168

92

10

3/8-2S

9.8

10.5

19.2

35

140

104

13

1/2-2S

12.8

13.5

22.3

28

112

144

16

5/8-2S

15.8

16.6

25.5

28

112

160

19

3/4-2S

18.8

19.8

29.7

25

100

192
